主要功能

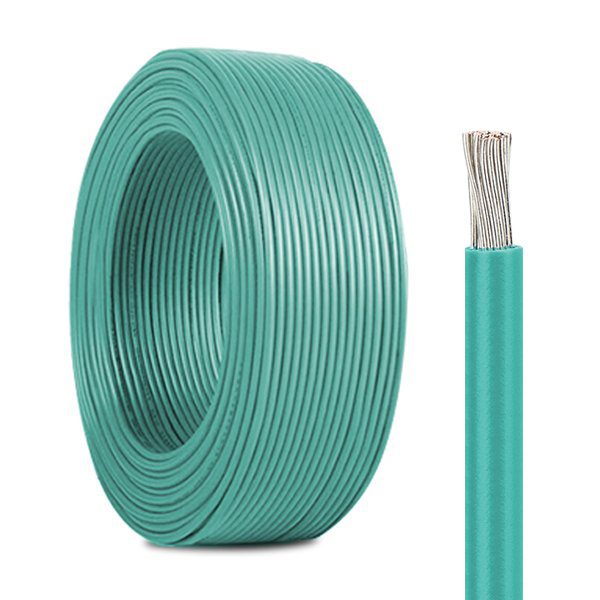

Aerospace-Grade Silver-Coated Copper
Material: 99.99% OFHC with 8μm silver plating (MIL-DTL-27500 compliant)
Gauge Range: AWG 40 (0.08mm²) to AWG 6 (13.3mm²)
Flexibility: 200+ bends at -196°C (liquid nitrogen tested)
Dual-Layer Defense System
Layer 1: Mica-glass tape (0.15mm) – 2000°C arc resistance (ASTM D3713)
Layer 2: ETFE film (0.08mm) – 1kV/mm dielectric strength
Function: Prevents ionization in high-altitude/vacuum conditions
1000V Continuous / 25kV Surge
Standards: UL 1332, IEC 60502-2, MIL-W-22759
Key Use: Satellite power buses, fusion reactor instrumentation
Triple-Shielded Protection
| Layer | Material | Certification |
| Insulation | PTFE + Alumina nanoparticles | UL 1332 File E12345 |
| Shield | Double-helix nickel-copper alloy | SAE AS4372 |
| Jacket | Silicone-Polyimide composite | EN 50382-3 |
| Fireproof | UL 1685 Vertical Flame Test (char length <30mm) |
Battlefield-Proven Resilience
| Threat | Performance | Standard |
| Thermal Shock | 500 cycles (-196°C ↔ +300°C) | ESA ECSS-Q-70-71 |
| Chemical | Resists Skydrol®/hydrazine (72h immersion) | ASTM D543 |
| Radiation | 200 Mrad gamma resistance | MIL-STD-883 |
| Abrasion | 100,000 cycles @ 5N load | ISO 6722 |
-200°C to +300°C Operational
Cryogenic: Maintains flexibility at liquid helium temperatures
Extreme Heat: 400°C intermittent (30min) for rocket nozzle wiring
UL4348 Specifications Sheet Pitch (mm) Conductor Insulation Resistance At 20C Ω/km Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia. (mm) (No.) Thickness (mm) O.D (mm)
通过 UL/VDE 认证的定制电缆束 - 精密设计，符合全球标准
定制线束解决方案 - 导线规格表 导体绝缘 最大电阻 (Ω/km, 20°C) 绝缘强度 (VAC, 1min) 尺寸 (AWG)：定制 (40-4/0) 材料：硅树脂、PVC、TPE硅树脂、PVC、TPE、XLPE、
汽车标准线束规格 导体绝缘 最大电阻（Ω/km，20°C） 绝缘强度（VAC，1 分钟） 尺寸（AWG）：8-20 材料：XLPE 结构：厚度： 0.6-1.0mm 133/0.3mm (8AWG) 外径： 4.5-8.2mm ≤2.1 (8AWG)
