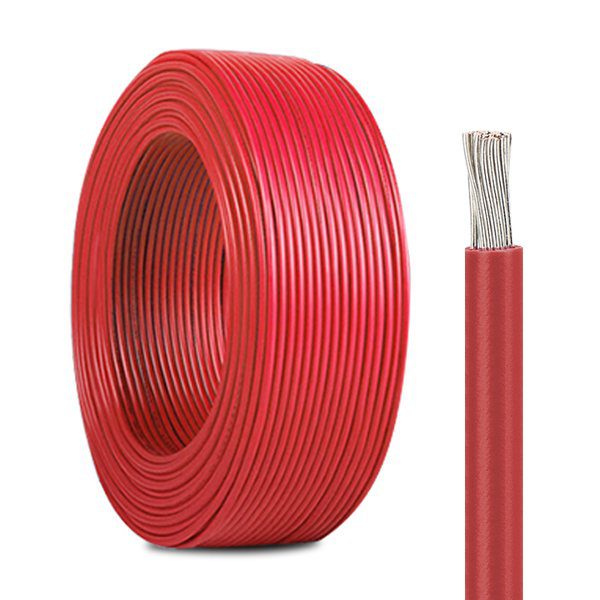

Heavy-Duty, Extreme Heat Performance
Key Features:
Best For:Foundries, aerospace, oil & gas power systems.
“Certified for MIL-DTL-25038 – trusted by defense contractors.”
Heavy-duty tinned copper (16-8 AWG), optimized for high current loads.
Mica tape + fiberglass wrap for fireproofing and chemical resistance.
1000V AC/DC (UL/CSA/IEC 60502).
Thick silicone with anti-tracking properties.
Voltage Rating:1000V (6KV insulation for extreme conditions).
Reinforced Design:Mica tape + fiberglass separator for fire/chemical resistance.
Applications:Aerospace, oil rigs, foundries.
Self-extinguishing, radiation/alkali/ozone resistant.
-90°C to +250°C (short-term 300°C).
UL3173 Specifications Sheet Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 26 7/0.160 0.48 0.76 2.10
UL3265 Specifications Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 32 7/0.080 0.24 0.26 0.80 596 1500 30
UL3266 Specifications Sheet Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 30 7/0.100 0.30 0.38 1.10 381 2000
Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 32 7/0.080 0.24 0.20 0.65 596 500 30 7/0.100
