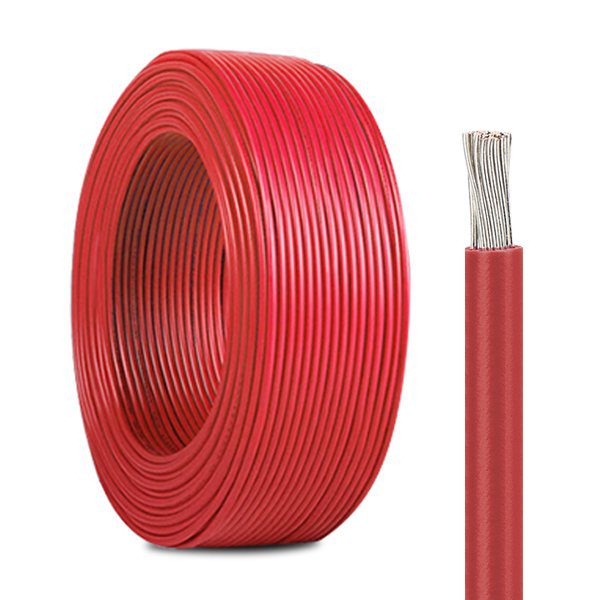

UL1571 Electronic Hook-Up Wires

80°C | 300V | Ultra-Slim Design | 34-22 AWG

Micro-scale wire for space-constrained applications. High-purity copper ensures minimal voltage drop.
Optimized for: Drones, wearables, microcontrollers, and miniaturized electronics.
Key Advantage: Lightweight without sacrificing durability.

Specifications

Conductors

Ultra-fine stranded copper (34-22 AWG)

Separator

N/A

Voltage Rating

300V

Insulation & Jacket Materials

Ultra-slim PVC

Resistance Properties

Minimal voltage drop, abrasion-resistant

Temperature Range

-20°C to +80°C

Industry Approvals

UL758、UL1581 Solid or stranded,tinned or bare copper conductor 50AWG minimum PVCor SR-PVC insulation comply with ROHS environmental standard Passes ULVW-1 and FT1 flame test Uniform insulation thickness to ensure easy stripping and cutting

UL1571 Specifications Sheet

Size (AWG)	Construction (No/mm)	Dia (mm)	Thickness (mm)	O.D (mm)	Maximum Conductor Resistance (Q/Km,20℃)	Dielectric Strength (Vac,1min)
32	7/0.080	0.24	0.23	0.65	596	500
30	7/0.100	0.30	0.23	0.80	381	500
28	7/0.127	0.38	0.23	0.90	239	500
26	7/0.160	0.48	0.23	1.00	150	500
24	11/0.160	0.61	0.23	1.10	94.2	500
22	17/0.160	0.76	0.23	1.30	59.4	500
20	26/0.160	0.94	0.23	1.50	37.6	500
18	41/0.160	1.18	0.23	1.80	23.9	500
16	26/0.254	1.49	0.23	2.10	15.1	500

Jacket Colors

Black

Red

Blue

White

Marking Options

Quick Print®

Surface Print

Indent Print

Logo / Icons / Branding

Sequential Marking
