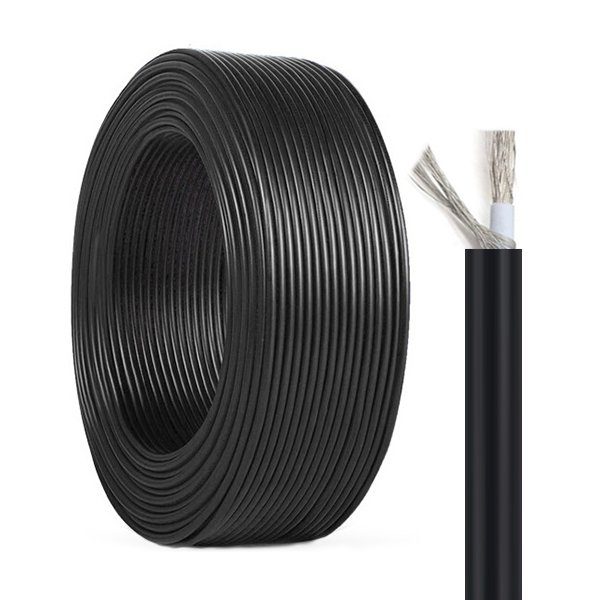

UL1185 Shielded Signal Cables
| Conductor | Insulation | Spiral Shield |
外被Jacket | Maximum Conductor Resistance (Ω/Km,20℃) |
|||||
Size (AWG) |
Construction (No/mm) |
Dia (mm) |
Thickness (mm) |
O.D (mm) |
(No/mm) |
O.D (mm) |
Thickness (mm) |
O.D (mm) |
|
| 28 | 7/0.127 | 0.38 | 0.38 | 1.20 | 38/0.1 | 1.40 | 0.45 | 2.30 | 239 |
| 26 | 7/0.160 | 0.48 | 0.38 | 1.30 | 45/0.1 | 1.50 | 0.45 | 2.40 | 150 |
| 24 | 11/0.160 | 0.61 | 0.38 | 1.40 | 46/0.1 | 1.60 | 0.45 | 2.60 | 94.2 |
| 22 | 17/0.160 | 0.76 | 0.38 | 1.60 | 54/0.1 | 1.80 | 0.45 | 2.70 | 59.4 |
| 20 | 26/0.160 | 0.94 | 0.38 | 1.80 | 56/0.1 | 2.00 | 0.45 | 3.00 | 37.6 |
| 18 | 41/0.160 | 1.18 | 0.38 | 2.10 | 64/0.1 | 2.30 | 0.45 | 3.50 | 23.9 |
| 16 | 26/0.254 | 1.49 | 0.38 | 2.40 | 74/0.1 | 2.60 | 0.45 | 3.80 | 15.1 |
