EMI/RFI Shielding Excellence
Industrial Toughness
Flexible & Easy Installation
Global Compliance Ready
Trusted in Critical Applications
Tailored to Your Needs
Supply Chain You Can Rely On
High-Flexibility Tinned Copper
Material: 99.97% electrolytic copper with Sn coating
Stranding: 0.10mm ultra-fine strands (32/0.10)
Gauge Range: 24 AWG to 12 AWG (0.25mm² – 4.0mm²)
Key Advantage:
12% lower DC resistance vs. bare copper (≤0.017 Ω/m @20°C)
Anti-corrosion for humid/chemical environments

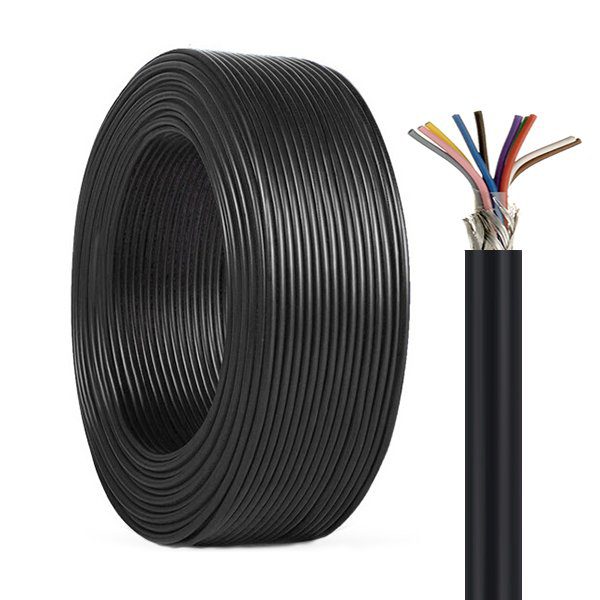

Dual-Layer EMI Shielding
Inner Layer: Aluminum-polyester foil (100% coverage)
Outer Layer: Tinned copper braid (85% coverage)
Key Advantage:
98% EMI/RFI suppression (tested per EN 50289-1-6)
Integrated drain wire for grounding reliability
Dual-Layer EMI Shielding
Inner Layer: Aluminum-polyester foil (100% coverage)
Outer Layer: Tinned copper braid (85% coverage)
Key Advantage:
98% EMI/RFI suppression (tested per EN 50289-1-6)
Integrated drain wire for grounding reliability
Triple-Protected Design
Conductor Insulation: PVC, color-coded per DIN 47100
Inner Sheath: PVC with oil resistance (ISO 1817 tested)
Outer Jacket: Heavy-duty PVC (IP67 rating when glanded)
Key Advantage:
10X abrasion resistance vs. standard PVC (ISO 6722)
Engineered for Signal Integrity
| Parameter | Value | Test Standard |
| Insulation Resistance | ≥20 MΩ·km (500V DC) | IEC 60811-1 |
| Capacitance Unbalance | ≤100 pF/100m | EN 50288-7 |
| Transfer Impedance | ≤50 mΩ/m @100MHz | IEC 62153-4-3 |
Engineered for Signal Integrity
| Parameter | Value | Test Standard |
| Insulation Resistance | ≥20 MΩ·km (500V DC) | IEC 60811-1 |
| Capacitance Unbalance | ≤100 pF/100m | EN 50288-7 |
| Transfer Impedance | ≤50 mΩ/m @100MHz | IEC 62153-4-3 |
UL4348 Specifications Sheet Pitch (mm) Conductor Insulation Resistance At 20C Ω/km Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia. (mm) (No.) Thickness (mm) O.D (mm)
Custom Cable Harnesses with UL/VDE Certification – Precision Engineered for Global Compliance
Custom Wire Harness Solutions – Wire Specification Table Conductor Insulation Max Resistance (Ω/km, 20°C) Dielectric Strength (VAC, 1min) Size (AWG): Custom (40-4/0) Material: Silicone, PVC, TPE, XLPE,
Automotive Standard Wire Harness Specifications Conductor Insulation Max Resistance (Ω/km, 20°C) Dielectric Strength (VAC, 1min) Size (AWG): 8-20 Material: XLPE Construction: Thickness: 0.6-1.0mm 133/0.3mm (8AWG) O.D: 4.5-8.2mm ≤2.1 (8AWG)
Your Trusted Partner for Premium Cable Solutions Specializing in Wire Harnesses & Assemblies,Multi-Core Cables, Flat Ribbon Cables, High-Temperature Durable Wires, and Electronic Hook-Up Wires- OEM/ODM Services Tailored for Global Industries.
