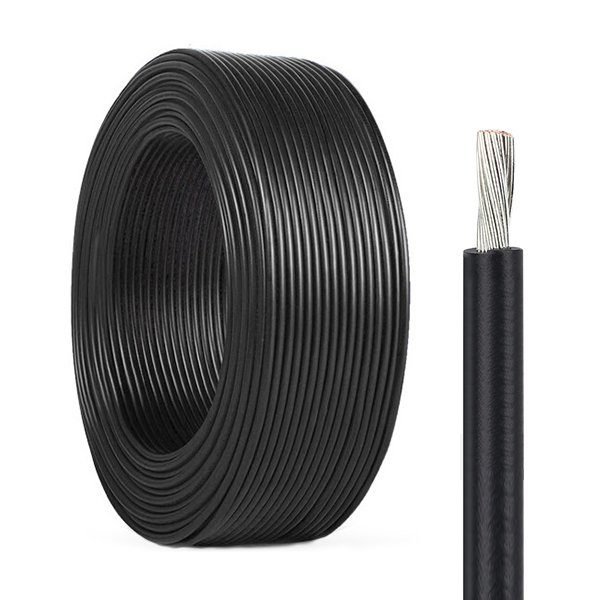

H07S-K Flexible PVC Cables (450/750V)
| Conductor (Size, AWG) |
Construction (No/mm) |
Dia (mm) |
Insulation Thickness (mm) |
O.D (mm) |
Max Conductor Resistance (Ω/km, 20°C) |
Dielectric Strength (Vac, 1min) |
| 18 | 30/0.18 | 0.8 | 0.8 | 3.5 | ≤ 24.5 | 2500 |
| 16 | 50/0.16 | 1.0 | 0.8 | 4.0 | ≤ 15.8 | 2500 |
| 14 | 80/0.16 | 1.3 | 0.9 | 4.8 | ≤ 9.95 | 2500 |
| 12 | 126/0.16 | 1.6 | 1.0 | 5.5 | ≤ 6.32 | 2500 |
| 10 | 196/0.16 | 2.1 | 1.2 | 6.8 | ≤ 3.95 | 2500 |
Notes:
Conductor: Tinned copper for enhanced corrosion resistance.
Insulation: Heavy-duty PVC (Type PVC/ST3).
Standards: IEC 60227, EN 50525.
