Engineered for Industrial Reliability & Safety
Key Highlights
✅ CE Certified | Full compliance with EN 50525 & IEC 60227
✅ Ultra-Flexible Design | 300/500V rated, -15°C to +70°C operational range
✅ Durable Construction | Oil-resistant PVC sheath, abrasion-proof performance
✅ Eco-Safe | RoHS & REACH compliant, 0% hazardous substances
✅ Long Lifespan | 10M+ bend cycles tested for heavy-duty applications

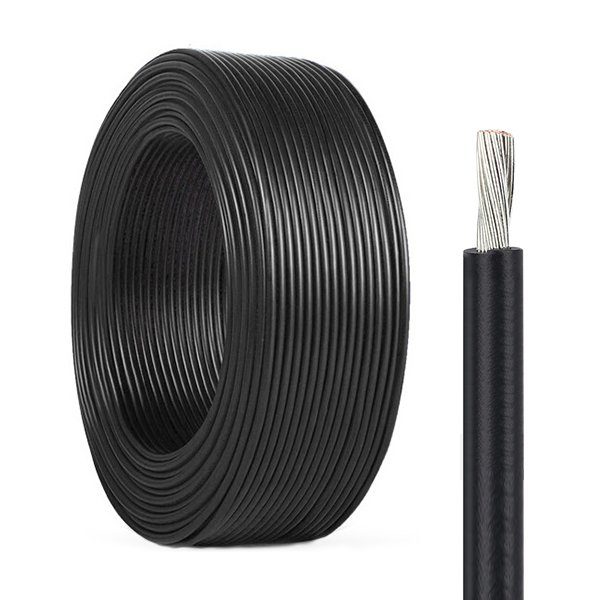

High-Purity Copper Core
Material: 99.9% oxygen-free copper (OFC)
Structure: Fine-stranded conductors for superior flexibility
Advantage: Low resistance, high conductivity, and minimal power loss in dynamic environments.
Reinforced Layer Protection
Design: High-tensile polyester tape separator
Function: Prevents conductor adhesion, ensures insulation integrity under bending stress.
Benefit: Enhances durability in high-vibration industrial settings.
Robust Electrical Performance
Rated Voltage: 300/500V
Compliance: Meets EN 50525 & IEC 60227 standards
Application: Ideal for low-voltage control circuits, power supply systems, and machinery wiring.
Double-Layer Protection
Insulation: PVC (Type TI1) – Flame-retardant, oil-resistant
Outer Jacket: Heavy-duty PVC (Type TM1) – Abrasion-proof, UV-resistant
Key Feature: Smooth surface design resists dirt buildup and chemical corrosion.
Engineered for Stability
Conductor Resistance: ≤ 13.3 Ω/km (at 20°C, per EN 60228)
Insulation Resistance: ≥ 15 MΩ·km (after immersion test)
Certified Safety: Passes IEC 60332-1 flame propagation test.
Extreme Environment Ready
Operational Range: -15°C to +70°C
Short-Circuit Withstand: Up to +160°C (5sec max)
Installation Flexibility: Maintains flexibility even at -5°C for easy cold-weather handling.
UL4348 Specifications Sheet Pitch (mm) Conductor Insulation Resistance At 20C Ω/km Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia. (mm) (No.) Thickness (mm) O.D (mm)
Custom Cable Harnesses with UL/VDE Certification – Precision Engineered for Global Compliance
Custom Wire Harness Solutions – Wire Specification Table Conductor Insulation Max Resistance (Ω/km, 20°C) Dielectric Strength (VAC, 1min) Size (AWG): Custom (40-4/0) Material: Silicone, PVC, TPE, XLPE,
Automotive Standard Wire Harness Specifications Conductor Insulation Max Resistance (Ω/km, 20°C) Dielectric Strength (VAC, 1min) Size (AWG): 8-20 Material: XLPE Construction: Thickness: 0.6-1.0mm 133/0.3mm (8AWG) O.D: 4.5-8.2mm ≤2.1 (8AWG)
