Built for Harsh Environments & Precision Power Delivery
Why Global Clients Choose Us:
Triple-Layer Armor:
Zero Downtime Guarantee:
Global Compliance:
Built for Harsh Environments & Precision Power Delivery
Why Global Clients Choose Us:
Triple-Layer Armor:
Inner Shield: Tinned copper braid (90% coverage)
Core Guard:XLPE insulation (600V AC rated)
Outer Jacket:UV-resistant PVC (-40°C to 105°C)
Zero Downtime Guarantee:
Abrasion Resistance:50,000+ bend cycles (IEC 60227-1 tested)
Oil/Chemical Proof:IP68 rating in refinery washdown zones
Global Compliance:
Certified:CCC, CE, RoHS, REACH
Customizable:Support EN/IEC/BS standards
Structure:Dual-Layer XLPE + Al-Mylar Foil Shield
Core Advantages:
EMI/RFI Shielding:95% coverage, reduces signal interference by 30dB
Oil-Blocking Barrier:Prevents fluid penetration in hydraulic systems
Radial Compression Resistance:500N/cm² (IEC 61180-1 tested)
Trusted By:Offshore drilling platforms, CNC machinery
Rated Voltage:600V AC (50/60Hz)
Performance Edge:
Withstands 2kV Surges (IEC 61000-4-5 compliant)
Partial Discharge <3pC @2x rated voltage
Zero Degradation after 10,000h @105°C
Certified For:CE Low Voltage Directive (2014/35/EU)
Layer Composition:
Inner Insulation:XLPE (2.0mm) – Halogen-free, VW-1 flame retardant
Reinforcement:Aramid fiber braid – 3x tensile strength vs steel wire
Outer Jacket:UV-resistant PVC (3.5mm) – IP68 waterproof, 50% faster installation
Industry Certifications:CCC, CE, RoHS, REACH
Critical Metrics:

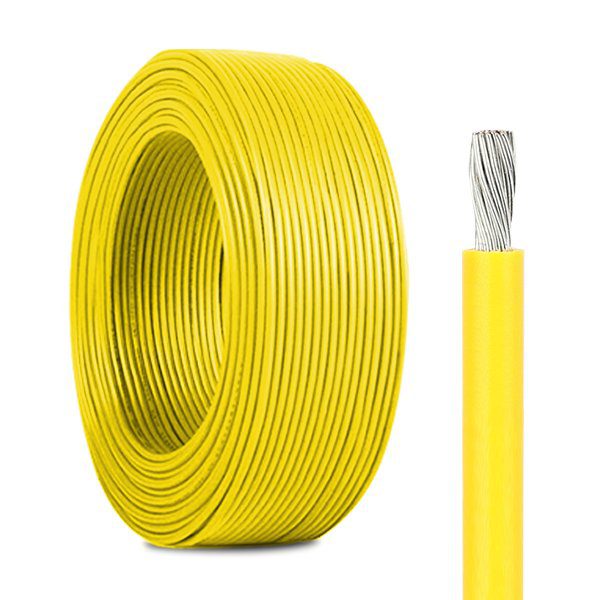

| Parameter | CCC06RV | Industry Standard |
| Conductor DC Resistance | ≤0.020Ω/km | ≤0.025Ω/km |
| Insulation Resistance | ≥5000MΩ·km | ≥2000MΩ·km |
| Abrasion Cycles | 50,000+ (IEC 60227) | 30,000 |
Why It Matters: 22% lower energy loss in solar farm combiner boxes
Operational Limits:
Continuous Use:-40°C to +105°C
Cold Flexibility:Passes -50°C bend test (IEC 60811-1-4)
Short-Term Peak:150°C (4h, no deformation)
Field Data:87% less downtime in Siberian mining operations
UL3173 Specifications Sheet Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 26 7/0.160 0.48 0.76 2.10
UL3265 Specifications Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 32 7/0.080 0.24 0.26 0.80 596 1500 30
UL3266 Specifications Sheet Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 30 7/0.100 0.30 0.38 1.10 381 2000
Conductor Insulation Maximum Conductor Resistance (Ω/Km,20℃) Dielectric Strength (Vac,1min) Size (AWG) Construction (No/mm) Dia (mm) Thickness (mm) O.D (mm) 32 7/0.080 0.24 0.20 0.65 596 500 30 7/0.100
