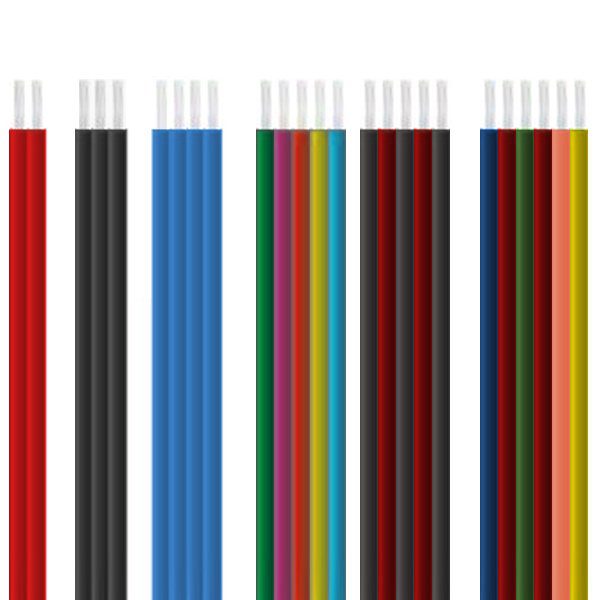

UL4348 Fiche technique
|
Pitch (mm) |
Chef d'orchestre | Isolation | Résistance
A 20C Ω/km |
Diélectrique La force (Vac,1min) |
||||
| Taille (AWG) | La construction
(No/mm) |
Dia. (mm) | (Non.) | Épaisseur
(mm) |
O.D (mm) | |||
|
1.5 |
26 |
7/0.16 |
0.48 |
3 | 0.43 | 1.4*4.4 |
150 |
2000 |
| 4 | 0.43 | 1.4*5.9 | ||||||
| 5 | 0.43 | 1.4*7.4 | ||||||
| 6 | 0.43 | 1.4*8.9 | ||||||
| 7 | 0.43 | 1.4*10.4 | ||||||
| 8 | 0.43 | 1.4*11.9 | ||||||
| 9 | 0.43 | 1.4*13.4 | ||||||
| 10 | 0.43 | 1.4*14.9 | ||||||
| 11 | 0.43 | 1.4*16.4 | ||||||
| 12 | 0.43 | 1.4*17.9 | ||||||
|
1.6 |
24 |
11/0.16 |
0.61 |
3 | 0.43 | 1.5*4.7 |
94.2 |
2000 |
| 4 | 0.43 | 1.5*6.3 | ||||||
| 5 | 0.43 | 1.5*7.9 | ||||||
| 6 | 0.43 | 1.5*9.5 | ||||||
| 7 | 0.43 | 1.5*11.1 | ||||||
| 8 | 0.43 | 1.5*12.7 | ||||||
| 9 | 0.43 | 1.5*14.3 | ||||||
| 10 | 0.43 | 1.5*15.9 | ||||||
| 11 | 0.43 | 1.5*17.5 | ||||||
| 12 | 0.43 | 1.5*19.1 | ||||||
