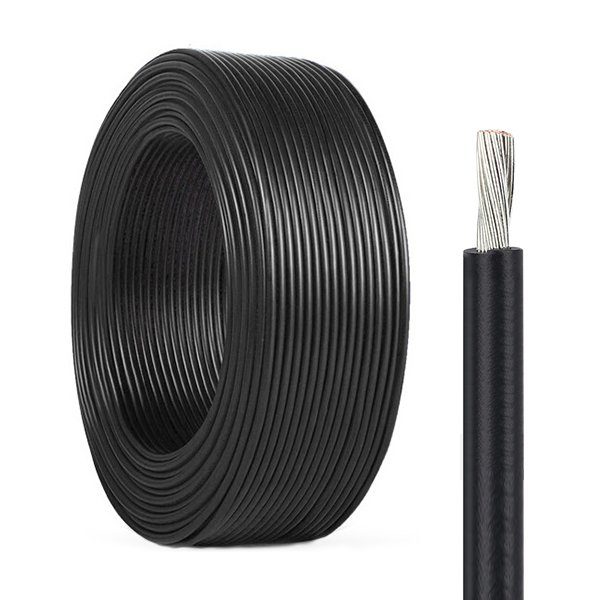

H05S-K Flexible PVC Cables (300/300V)
| Conductor (Size, AWG) |
Construcción (No/mm) |
Dia (mm) |
Insulation Espesor (mm) |
O.D (mm) |
Max Conductor Resistance (Ω/km, 20°C) |
Dielectric Strength (Vac, 1min) |
| 18 | 30/0.18 | 0.8 | 0.6 | 3.0 | ≤ 24.5 | 2000 |
| 16 | 50/0.16 | 1.0 | 0.6 | 3.4 | ≤ 15.8 | 2000 |
| 14 | 80/0.16 | 1.3 | 0.7 | 4.0 | ≤ 9.95 | 2000 |
| 12 | 126/0.16 | 1.6 | 0.7 | 4.6 | ≤ 6.32 | 2000 |
| 10 | 196/0.16 | 2.1 | 0.8 | 5.8 | ≤ 3.95 | 2000 |
Notes:
Conductor:Bare copper, finely stranded for flexibility.
Insulation:PVC (Type PVC/T3).
Standards:IEC 60227, EN 50525.
