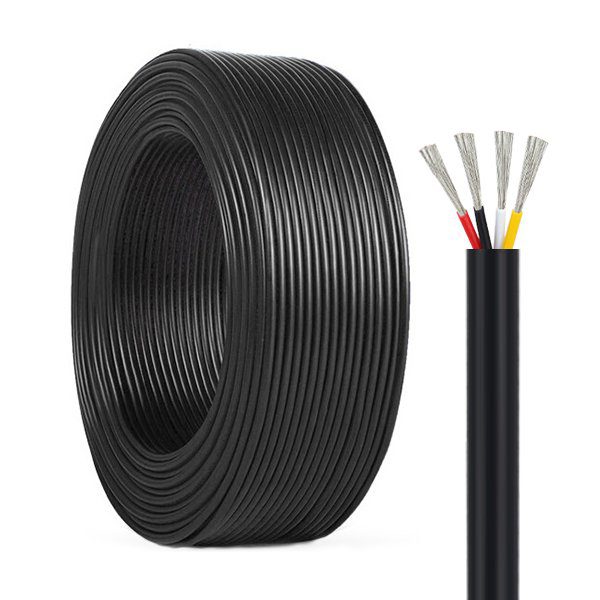

Premium Quality, Lightweight Power Solution for Everyday Applications
Certified Safety:
Ultra-Flexible Design:
Durable & Reliable:
Wide Applications:
Customizable Options:
Global Compliance:
Optimized Flexibility & Conductivity:
Material:High-purity bare copper, finely stranded for maximum flexibility.
Design:3-core configuration (3×0.75mm² to 3×1.5mm²), ideal for low-power applications.
Key Advantage:Low resistance (e.g., ≤26 Ω/km for 0.75mm²) ensures efficient power transfer.
Simplified Yet Robust Construction:
Structure:No separate internal filler – tightly twisted cores with PVC insulation.
Function:Compact design reduces bulkiness while maintaining mechanical protection.
Certified for Safe Low-Voltage Use:
Rating:300/300V AC, compliant with IEC 60227 and HAR (HD21.3 S3) standards.
Application Fit:Perfect for household appliances, extension cords, and indoor machinery wiring.
Dual-Layer Protection:
Insulation:Color-coded PVC (brown/blue/green-yellow) for easy phase identification.
Jacket:Smooth PVC outer layer, flame-retardant (VDE-tested) and resistant to abrasion/moisture.
Compliance:RoHS/REACH compliant, halogen-free options on request.
Engineered for Stability:
Conductor Resistance:≤26 Ω/km (0.75mm²), ≤19.5 Ω/km (1.0mm²), ≤13.3 Ω/km (1.5mm²).
Insulation Resistance:≥1 GΩ·km at 70°C (EN 60227 tested).
Adaptable to Common Environments:
Operating Range:-30°C to +70°C (-22°F to +158°F).
Short-Term Tolerance:Withstands occasional peaks up to +90°C.
Especificaciones UL3173 Hoja Conductor Aislamiento Resistencia máxima del conductor (Ω/Km,20℃) Rigidez dieléctrica (Vac,1min) Tamaño (AWG) Construcción (No/mm) Diámetro (mm) Espesor (mm) D.E. (mm) 26 7/0.160 0.48 0.76 2.10
Especificaciones UL3265 Aislamiento del conductor Resistencia máxima del conductor (Ω/Km,20℃) Rigidez dieléctrica (Vac,1min) Tamaño (AWG) Construcción (No/mm) Diámetro (mm) Espesor (mm) Diámetro exterior (mm) 32 7/0,080 0,24 0,26 0,80 596 1500 30
Especificaciones UL3266 Hoja Conductor Aislamiento Resistencia máxima del conductor (Ω/Km,20℃) Rigidez dieléctrica (Vac,1min) Tamaño (AWG) Construcción (No/mm) Diámetro (mm) Espesor (mm) D.E. (mm) 30 7/0.100 0.30 0.38 1.10 381 2000
Aislamiento del conductor Resistencia máxima del conductor (Ω/Km,20℃) Rigidez dieléctrica (Vac,1min) Tamaño (AWG) Construcción (No/mm) Diámetro (mm) Espesor (mm) D.E. (mm) 32 7/0.080 0,24 0,20 0,65 596 500 30 7/0.100
